Y-waveguide Phase Modulator
Y-waveguide phase modulator is a LiNbO3 multifunctional integrated device prepared by plasmonic exchange process, which can realize the functions of polarization, beam splitting and modulation of optical wave signals with low half-wave voltage, low insertion loss and high polarization extinction ratio.And it is applicable to the fields of fiber optic sensing, coherent optical communication, and quantum confidential communication.
Key Features
low half-wave voltage, low insertion loss, low waveform slope, high stability
Application area

fiber optic sensing, coherent optical communication, quantum secure communication

  • Technical Specifications
  • Application Cases
技术规格
ItemsParameters
Operating Wavelength1310nm±20nm or 1550nm±10nm
Half-Wave Voltage≤4.0V@1310nm,≤4.5V@1550nm
Insertion Loss≤4.0dB
Spectral Ratio48/52~52/48
Pigtail Polarization Crosstalk≤-30.0dB
Backward Light Reflection≤-55.0dB
Electro-optical Modulation Bandwidth≥300MHz
Waveform Slope≤1/250
The Variation of Full-Temperature Insertion Loss≤0.5dB
Full-temperature Pigtail Polarization Crosstalk≤-25.0dB
Operating Temperature-45℃~ +70℃
Storage Temperature-55℃~ +85℃
Pigtail TypePMF
Pigtail Cladding Diameter80μm or 125μm

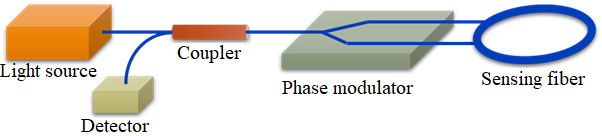

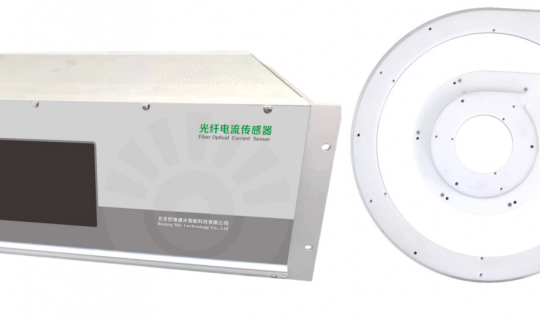

应用案例

Y-waveguide Phase Modulator
