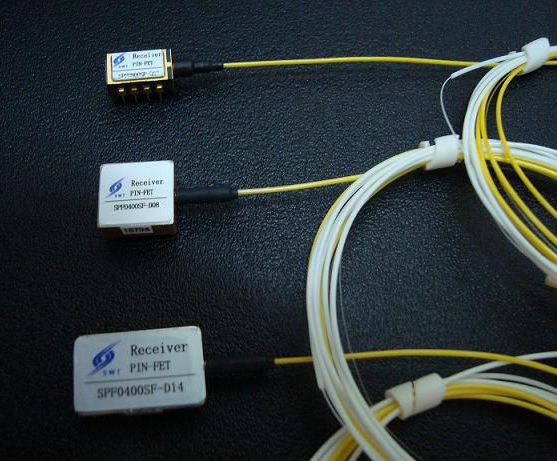

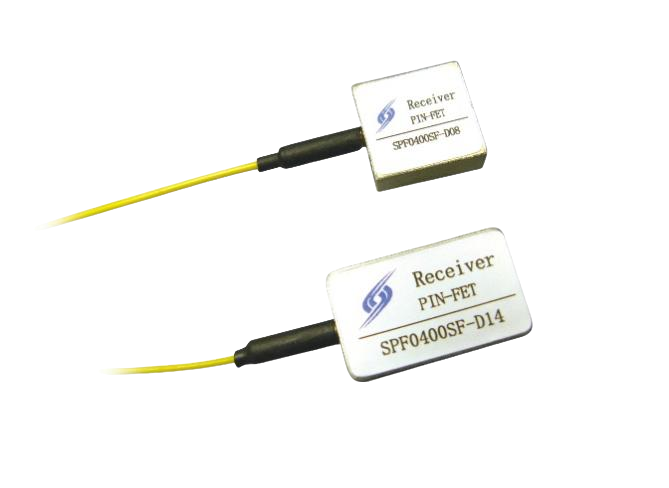

PIN-FET
The PIN-FET optical receiver module is a photoelectric conversion device that converts and amplifies light wave signals into electrical signals. It integrates a PIN photodiode and a preamplifier based on a FET, combining the high photoelectric conversion efficiency of a PIN with the high input impedance characteristics of a FET, thus realizing the advantages of high sensitivity, low noise, and wide response wavelength.
Key Features
high sensitivity, low noise, wide response wavelength, high reliability
Application area

fiber optic communication, fiber optic sensing, laser ranging

  • Technical Specifications
  • Application Cases
技术规格


Items
Parameters
Operating Wavelength1100nm~1650nm
PIN Photodiode Current Responsivity@1310nm≥0.85A/W
@1550nm≥0.90A/W
PIN Photodiode Dark Current≤0.5nA
Trans-impedance10kΩ~ 1200kΩ,customizable
Operating VoltageDC ±5V
No Light Output Voltage-2V~ -1V,customizable
Pigtail TypeSMF
Pigtail Cladding Diameter80μm or 125μm
Operating Temperature-50℃~ +85℃
Storage Temperature-55℃~ +85℃



应用案例

PIN-FET光接收组件
