SPUN Polarization-maintaining Optical Fiber

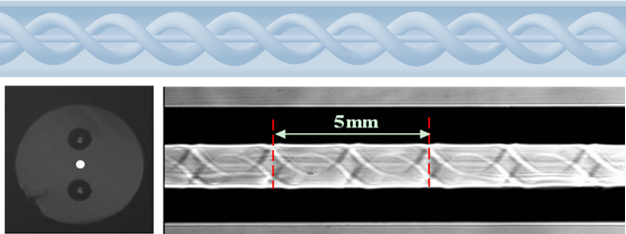

The SPUN polarization-maintaining optical fiber is a type of specialty optical fiber that utilizes a rotating preform technique during the drawing process. By taking advantage of the rotational symmetry of high birefringence fibers, it ensures that the polarization state remains consistent along the entire length of the fiber. This significantly reduces polarization mode dispersion and enhances polarization-maintaining performance, offering strong resistance to environmental interference. Product Details
Key Features
circular polarization retention, temperature insensitive, bending insensitive
Application area

fiber optic light source, fiber optic sensing, fiber optic communication

  • Technical Specifications
  • Application Cases
技术规格


ItemsParameters
Operating Wavelength1310nm
Cutoff Wavelength1100nm~ 1280nm
Mold Field Diameter @1310nm6.0μm or 9.0μm
Attenuation@1310nm≤8.0dB/km

Wire Beat Line@1310nm

4.8mm~10.0mm
Pitch2.0mm ~ 5.0mm
Fiber Cladding Diameter80μm or 125μm
Fiber Coating Layer Diameter160μm or 245μm
Tension Screening100kpsi
Operating Temperature-40℃~+85℃
Storage Temperature-55℃~+85℃


应用案例
