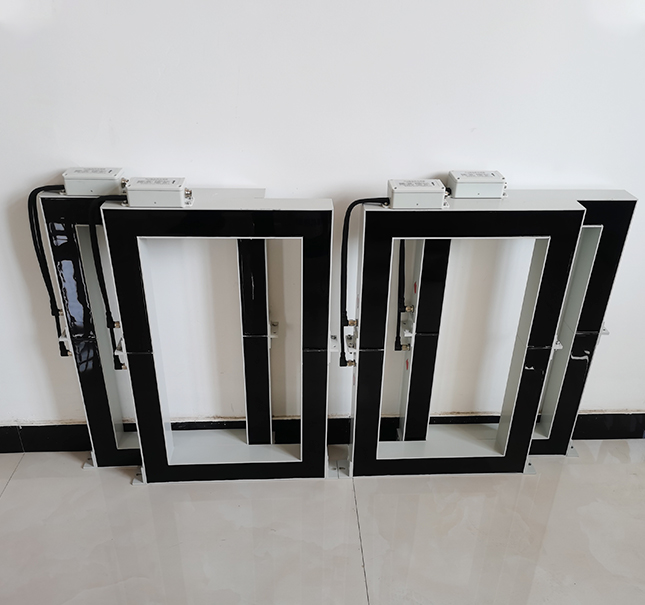

▶ Product Application Description:

1、Epoxy resin one-piece potting to meet IP67 grade waterproof.

2、Wide range of DC18~36V power input with internal isolation to reduce signal crosstalk.

3、Current signal output with strong anti-interference ability is suitable for long-distance transmission.

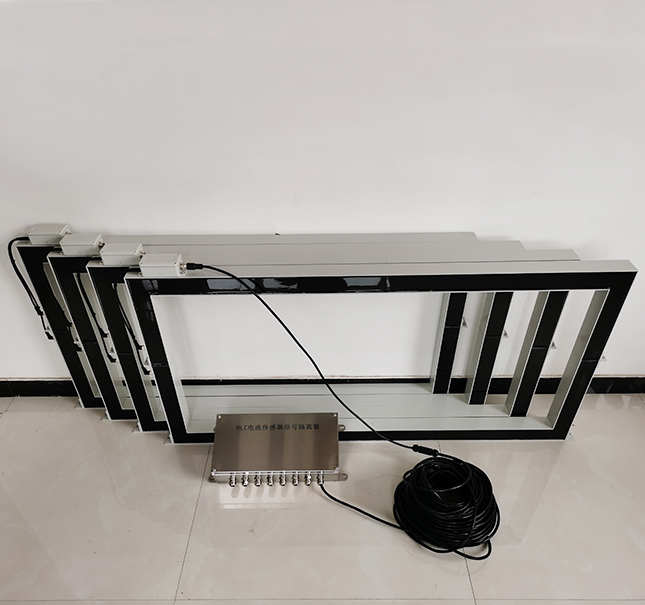

4、Optional signal isolation box with 6-channel fully isolated signal output.

▶ Main technical indicators:

1,Accuracy：0.2%，0.5%

2,Linearity: 0.1%

3, Measuring range: 0-5kA, 0-50kA, 0-320kA. dozens of range specifications.

4, the output signal: 0-5V, 0-20mA, 4-20mA and so on for the user to choose (can be single-selected or multi-selected).

5, load capacity: voltage signal (load resistance ≥ 10k), current signal (load resistance ≤ 250Ω)

6, response time: <10μS, <1mS

7, Operating voltage: DC18 ~ 36V or AC200 ~ 240V (50HZ)

8,Typical power consumption: <10VA

▶ Common external dimensions
